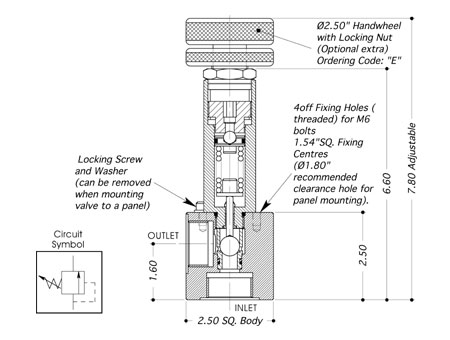

1" Stainless Steel Relief Valve for pressures up to 3,000 psi. Approved as a Safety Accessory to Category IV of the Pressure Equipment Directive 2014/68/EU.
Valve Type: | RL100 |
---|---|
Porting/Connection Options: ("AE" threads fitted only to the INLET port) | P = BSP (Parallel) N = NPT (Taper) |
Valve Options: | E |
Working Media: (std) : | Oil / Water Glycol Duty (no ordering code req'd) |
Press. Range: | 0.7K - 3K psi |
Orifice Size: | Ø0.437" |
Port Size: | 1.0" |
Valve Seat Mat'l: (standard) : | Stainless Steel - 440C (liquid use) |
Seal Material: | Viton (other materials available by request) |
Dry Weight: (kg) : | 2.75 |
Working Temperature Range: | -10°C to +120°C |
Flow Rate: | Contact factory for details |
