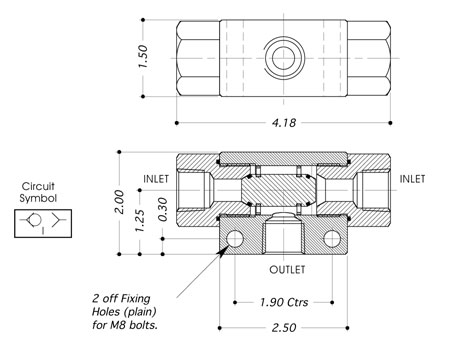

1/4" Stainless Steel Shuttle Valve for pressures up to 8,000 psi with liquid and 4,000 psi with gas.
Valve Type: | SV50/25 |
---|---|
Porting/Connection Options: | P = BSP (Parallel) N = NPT (Taper) M = Manifold |
Max. Working Pressure: Liquid : | 8,000 psi |
Max. Working Pressure : Gas : | 4,000 psi |
Port Size: | 1/4" |
Valve Seat Material: | Stainless Steel - 316/1.4404 |
Seal Material: | Viton (other materials available by request) |
CV Value: | 1.26 |
Dry Weight: (kg) : | 1.2 |
Working Temperature Range: | -10°C to +120°C |
