Derivative options available

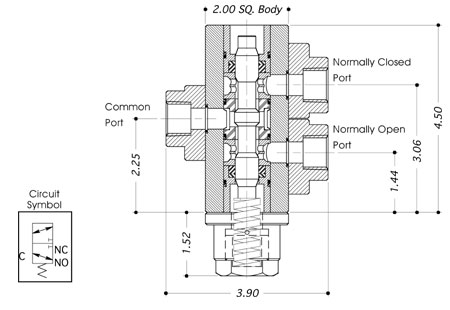

3B50M-A2-G-6K DIRECTIONAL CONTROL VALVE (3B50-G)
3B50: 1/2" 316 St.St. 2/3 directional valve., M: Manifold Mounted, A2: Pilot pressure range: 50 - 116 psi, Pilot connection: 1/4" NPT female., G: Soft seated spring return, 6K: M.W.P. 6,000 psi Liquid 3,500 psi Gas, Viton seals: -10°C to +80°C, Suitable for 2/3 or 2/2 NO or NC operation, Suitable for use with liquid or gas.
View actuator
QTY RQD:
3B50M-C0-G-6K DIRECTIONAL CONTROL VALVE (3B50-G)
3B50: 1/2" 316 St.St. 2/3 cam op. valve., M: Manifold Mounted, C0: Cam roller actuator, Pilot connection: G: Soft seated spring return, 6K: M.W.P. (Valve) 6,000 psi Liquid 3,500 psi Gas, Viton seals: -10°C to +80°C, Suitable for 2/3 or 2/2 NO or NC operation, Suitable for use with liquid or gas.
View actuator
QTY RQD:
3B50M-C1-G-6K DIRECTIONAL CONTROL VALVE (3B50-G)
3B50: 1/2" 316 St.St. 2/3 cam op. valve., M: Manifold Mounted, C1: Cam pin actuator, Pilot connection: G: Soft seated spring return, 6K: M.W.P. 6,000 psi Liquid 3,500 psi Gas, Viton seals: -10°C to +80°C, Suitable for 2/3 or 2/2 NO or NC operation, Suitable for use with liquid or gas.
View actuator
QTY RQD:
3B50M-DL-G-6K DIRECTIONAL CONTROL VALVE (3B50-G)
3B50: 1/2" 316 St.St. 2/3 lever op. valve., M: Manifold Mounted, DL: Dead mans lever, G: Soft seated spring return, 6K: M.W.P. 6,000 psi Liquid 3,500 psi Gas, Viton seals: -10°C to +80°C, Suitable for 2/3 or 2/2 NO or NC operation, Suitable for use with liquid or gas.
View actuator
QTY RQD:
3B50M-H0-G-6K DIRECTIONAL CONTROL VALVE (3B50-G)
3B50: 1/2" 316 St.St. 2/3 directional valve., M: Manifold Mounted, H0: Pilot pressure range: 1,000 - 3,500 psi, Pilot connection: 1/4" NPT female., G: Soft seated spring return, 6K: M.W.P. 6,000 psi Liquid 3,500 psi Gas, Viton seals: -10°C to +80°C, Suitable for 2/3 or 2/2 NO or NC operation, Suitable for use with liquid or gas.
View actuator
QTY RQD:
3B50M-H1-G-6K DIRECTIONAL CONTROL VALVE (3B50-G)
3B50: 1/2" 316 St.St. 2/3 directional valve., M: Manifold Mounted, H1: Pilot pressure range: 3,000 - 7,500 psi, Pilot connection: 1/4" NPT female., G: Soft seated spring return, 6K: M.W.P. 6,000 psi Liquid 3,500 psi Gas, Viton seals: -10°C to +80°C, Suitable for 2/3 or 2/2 NO or NC operation, Suitable for use with liquid or gas.
View actuator
QTY RQD:
3B50M-H3-G-6K DIRECTIONAL CONTROL VALVE (3B50-G)
3B50: 1/2" 316 St.St. 2/3 directional valve., M: Manifold Mounted, H3: Pilot pressure range: 60 - 210 psi, Pilot connection: 1/4" NPT female., G: Soft seated spring return, 6K: M.W.P. (Valve) 6,000 psi Liquid 3,500 psi Gas, Viton seals: -10°C to +80°C, Suitable for 2/3 or 2/2 NO or NC operation, Suitable for use with liquid or gas.
View actuator
QTY RQD:
3B50M-L-G-6K DIRECTIONAL CONTROL VALVE (3B50-G)
3B50: 1/2" 316 St.St. 2/3 lever op. valve., M: Manifold Mounted, L: Detented lever, G: Soft seated spring return, 6K: M.W.P. 6,000 psi Liquid 3,500 psi Gas, Viton seals: -10°C to +80°C, Suitable for 2/3 or 2/2 NO or NC operation, Suitable for use with liquid or gas.
View actuator
QTY RQD:
3B50N-A2-G-6K DIRECTIONAL CONTROL VALVE (3B50-G)
3B50: 1/2" 316 St.St. 2/3 directional valve., N: service ports 1/2" NPT, A2: Pilot pressure range: 50 - 116 psi, Pilot connection: 1/4" NPT female., G: Soft seated spring return, 6K: M.W.P. 6,000 psi Liquid 3,500 psi Gas, Viton seals: -10°C to +80°C, Suitable for 2/3 or 2/2 NO or NC operation, Suitable for use with liquid or gas.
View actuator
QTY RQD:
3B50N-C0-G-6K DIRECTIONAL CONTROL VALVE (3B50-G)
3B50: 1/2" 316 St.St. 2/3 cam op. valve., N: service ports 1/2" NPT, C0: Cam roller actuator, Pilot connection: G: Soft seated spring return, 6K: M.W.P. (Valve) 6,000 psi Liquid 3,500 psi Gas, Viton seals: -10°C to +80°C, Suitable for 2/3 or 2/2 NO or NC operation, Suitable for use with liquid or gas.
View actuator
QTY RQD:
3B50N-C1-G-6K DIRECTIONAL CONTROL VALVE (3B50-G)
3B50: 1/2" 316 St.St. 2/3 cam op. valve., N: service ports 1/2" NPT, C1: Cam pin actuator, Pilot connection: G: Soft seated spring return, 6K: M.W.P. 6,000 psi Liquid 3,500 psi Gas, Viton seals: -10°C to +80°C, Suitable for 2/3 or 2/2 NO or NC operation, Suitable for use with liquid or gas.
View actuator
QTY RQD:
3B50N-DL-G -6K DIRECTIONAL CONTROL VALVE (3B50-G)
3B50: 1/2" 316 St.St. 2/3 lever op. valve., N: service ports 1/2" NPT, DL: Dead mans lever, G: Soft seated spring return, 6K: M.W.P. 6,000 psi Liquid 3,500 psi Gas, Viton seals: -10°C to +80°C, Suitable for 2/3 or 2/2 NO or NC operation., All ports are linked during changeover, Suitable for use with liquid or gas.
View actuator
QTY RQD:
3B50N-H0-G-6K DIRECTIONAL CONTROL VALVE (3B50-G)
3B50: 1/2" 316 St.St. 2/3 directional valve., N: service ports 1/2" NPT, H0: Pilot pressure range: 1,000 - 3,500 psi, Pilot connection: 1/4" NPT female., G: Soft seated spring return, 6K: M.W.P. 6,000 psi Liquid 3,500 psi Gas, Viton seals: -10°C to +80°C, Suitable for 2/3 or 2/2 NO or NC operation, Suitable for use with liquid or gas.
View actuator
QTY RQD:
3B50N-H1-G-6K DIRECTIONAL CONTROL VALVE (3B50-G)
3B50: 1/2" 316 St.St. 2/3 directional valve., N: service ports 1/2" NPT, H1: Pilot pressure range: 3,000 - 7,500 psi, Pilot connection: 1/4" NPT female., G: Soft seated spring return, 6K: M.W.P. 6,000 psi Liquid 3,500 psi Gas, Viton seals: -10°C to +80°C, Suitable for 2/3 or 2/2 NO or NC operation, Suitable for use with liquid or gas.
View actuator
QTY RQD:
3B50N-H3-G-6K DIRECTIONAL CONTROL VALVE (3B50-G)
3B50: 1/2" 316 St.St. 2/3 directional valve., N: service ports 1/2" NPT, H3: Pilot pressure range: 60 - 210 psi, Pilot connection: 1/4" NPT female., G: Soft seated spring return, 6K: M.W.P. 6,000 psi Liquid 3,500 psi Gas, Viton seals: -10°C to +80°C, Suitable for 2/3 or 2/2 NO or NC operation, Suitable for use with liquid or gas.
View actuator
QTY RQD:
3B50N-L-G-6K DIRECTIONAL CONTROL VALVE (3B50-G)
3B50: 1/2" 316 St.St. 2/3 lever op. valve., N: service ports 1/2" NPT, L: Detented lever, G: Soft seated spring return, 6K: M.W.P. 6,000 psi Liquid 3,500 psi Gas, Viton seals: -10°C to +80°C, Suitable for 2/3 or 2/2 NO or NC operation., All ports are linked during changeover, Suitable for use with liquid or gas.
View actuator
QTY RQD:
3B50P-A2-G-6K DIRECTIONAL CONTROL VALVE (3B50-G)
3B50: 1/2" 316 St.St. 2/3 directional valve., P: service ports 1/2" BSPP, A2: Pilot pressure range: 50 - 116 psi, Pilot connection: 1/4" NPT female., G: Soft seated spring return, 6K: M.W.P. 6,000 psi Liquid 3,500 psi Gas, Viton seals: -10°C to +80°C, Suitable for 2/3 or 2/2 NO or NC operation, Suitable for use with liquid or gas.
View actuator
QTY RQD:
3B50P-C0-G-6K DIRECTIONAL CONTROL VALVE (3B50-G)
3B50: 1/2" 316 St.St. 2/3 cam op. valve., P: service ports 1/2" BSPP, C0: Cam roller actuator, Pilot connection: G: Soft seated spring return, 6K: M.W.P. (Valve) 6,000 psi Liquid 3,500 psi Gas, Viton seals: -10°C to +80°C, Suitable for 2/3 or 2/2 NO or NC operation, Suitable for use with liquid or gas.
View actuator
QTY RQD:
3B50P-C1-G-6K DIRECTIONAL CONTROL VALVE (3B50-G)
3B50: 1/2" 316 St.St. 2/3 cam op. valve., P: service ports 1/2" BSPP, C1: Cam pin actuator, Pilot connection: G: Soft seated spring return, 6K: M.W.P. 6,000 psi Liquid 3,500 psi Gas, Viton seals: -10°C to +80°C, Suitable for 2/3 or 2/2 NO or NC operation, Suitable for use with liquid or gas.
View actuator
QTY RQD:
3B50P-DL-G -6K DIRECTIONAL CONTROL VALVE (3B50-G)
3B50: 1/2" 316 St.St. 2/3 lever op. valve., P: service ports 1/2" BSPP, DL: Dead mans lever, G: Soft seated spring return, 6K: M.W.P. 6,000 psi Liquid 3,500 psi Gas, Viton seals: -10°C to +80°C, Suitable for 2/3 or 2/2 NO or NC operation, Suitable for use with liquid or gas.
View actuator
QTY RQD:
3B50P-H0-G-6K DIRECTIONAL CONTROL VALVE (3B50-G)
3B50: 1/2" 316 St.St. 2/3 directional valve., P: service ports 1/2" BSPP, H0: Pilot pressure range: 1,000 - 3,500 psi, Pilot connection: 1/4" NPT female., G: Soft seated spring return, 6K: M.W.P. 6,000 psi Liquid 3,500 psi Gas, Viton seals: -10°C to +80°C, Suitable for 2/3 or 2/2 NO or NC operation, Suitable for use with liquid or gas.
View actuator
QTY RQD:
3B50P-H1-G-6K DIRECTIONAL CONTROL VALVE (3B50-G)
3B50: 1/2" 316 St.St. 2/3 directional valve., P: service ports 1/2" BSPP, H1: Pilot pressure range: 3,000 - 7,500 psi, Pilot connection: 1/4" NPT female., G: Soft seated spring return, 6K: M.W.P. 6,000 psi Liquid 3,500 psi Gas, Viton seals: -10°C to +80°C, Suitable for 2/3 or 2/2 NO or NC operation, Suitable for use with liquid or gas.
View actuator
QTY RQD:
3B50P-H3-G-6K DIRECTIONAL CONTROL VALVE (3B50-G)
3B50: 1/2" 316 St.St. 2/3 directional valve., P: service ports 1/2" BSPP, H3: Pilot pressure range: 60 - 210 psi, Pilot connection: 1/4" NPT female., G: Soft seated spring return, 6K: M.W.P. 6,000 psi Liquid 3,500 psi Gas, Viton seals: -10°C to +80°C, Suitable for 2/3 or 2/2 NO or NC operation, Suitable for use with liquid or gas.
View actuator
QTY RQD:
3B50P-L-G -6K DIRECTIONAL CONTROL VALVE (3B50-G)
3B50: 1/2" 316 St.St. 2/3 lever op. valve., P: service ports 1/2" BSPP, L: Detented lever, G: Soft seated spring return, 6K: M.W.P. 6,000 psi Liquid 3,500 psi Gas, Viton seals: -10°C to +80°C, Suitable for 2/3 or 2/2 NO or NC operation, Suitable for use with liquid or gas.
View actuator
QTY RQD:
