Derivative options available

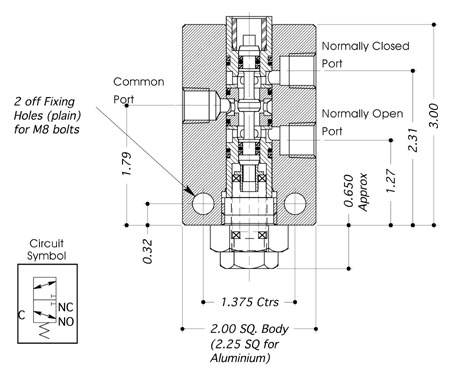

3B25M-C0-10K DIRECTIONAL CONTROL VALVE (3B25)
3B25: 1/4" 316 St.St. 3/2 cam op.valve. , M: Manifold Mounted, C0: Cam roller actuator, 10K: M.W.P. 10,000 psi Liquid, Viton seals: -10°C to +120°C, Hard seated, spring return., Suitable for 2/3 or 2/2 NO or NC operation., All ports are linked during changeover, Suitable for liquid use only.
View actuator
QTY RQD:
3B25M-C1-10K DIRECTIONAL CONTROL VALVE (3B25)
3B25: 1/4" 316 St.St. 3/2 cam op.valve. , M: Manifold Mounted, C1: Cam pin actuator, 10K: M.W.P. 10,000 psi Liquid, Viton seals: -10°C to +120°C, Hard seated, spring return., Suitable for 2/3 or 2/2 NO or NC operation., All ports are linked during changeover, Suitable for liquid use only.
View actuator
QTY RQD:
3B25M-DL-10K DIRECTIONAL CONTROL VALVE (3B25)
3B25: 1/4" 316 St.St. 2/3 directional valve. , M: Manifold Mounted, DL: Deadmans lever, 10K: Max. W.P. 10,000 psi (liquid), Viton seals: -10°C to +120°C, Hard seated, spring return, Suitable for 2/3 or 2/2 NO or NC operation., All ports are linked during changeover, Suitable for liquid use only.
View actuator
QTY RQD:
3B25M-H0-10K DIRECTIONAL CONTROL VALVE (3B25)
3B25: 1/4" 316 St.St. 3/2 pilot op.valve., M: Manifold Mounted, H0: Pilot operating range: 400 - 3,500 psi, Pilot connection : 1/4" NPT female., 10K: M.W.P. (Valve) 10,000 psi, Suitable for N.O. or N.C. operation., All ports are linked during changeover, Suitable for liquid use only.
View actuator
QTY RQD:
3B25M-H1-10K DIRECTIONAL CONTROL VALVE (3B25)
3B25: 1/4" 316 St.St. 2/3 directional valve., M: Manifold Mounted, H1: Pilot operating range: 1,400 - 10,000 psi, Pilot connection : 1/4" NPT female., 10K: M.W.P. (Valve) 10,000 psi Liquid, Viton seals: -10°C to +120°C, Hard seated, spring return, Suitable for 3/2 or 2/2 NO or NC operation, Suitable for liquid use only.
View actuator
QTY RQD:
3B25M-H3-10K DIRECTIONAL CONTROL VALVE (3B25)
3B25: 1/4" 316 St.St. 2/3 directional valve. , M: Manifold Mounted, H3: Pilot operating range: 44 - 300 psi, Pilot connection : 1/4" NPT female., 10K: M.W.P. (Valve) 10,000 psi Liquid, Viton seals: -10°C to +120°C, Hard seated, spring return, Suitable for 3/2 or 2/2 NO or NC operation, Suitable for liquid use only.
View actuator
QTY RQD:
3B25M-L-10K DIRECTIONAL CONTROL VALVE (3B25)
3B25: 1/4" 316 St.St. 2/3 directional valve., M: Manifold Mounted, L: Detented Lever, 10K: M.W.P. 10,000 psi Liquid, Viton seals: -10°C to +120°C, Hard seated, spring return., Suitable for 2/3 or 2/2 NO or NC operation., All ports are linked during changeover, Suitable for liquid use only.
View actuator
QTY RQD:
3B25N-C0-10K DIRECTIONAL CONTROL VALVE (3B25)
3B25: 1/4" 316 St.St. 3/2 cam op.valve. , N: service ports 1/4" NPT, C0: Cam roller actuator, 10K: M.W.P. 10,000 psi Liquid, Viton seals: -10°C to +120°C, Hard seated, spring return., Suitable for 2/3 or 2/2 NO or NC operation., All ports are linked during changeover, Suitable for liquid use only.
View actuator
QTY RQD:
3B25N-C1-10K DIRECTIONAL CONTROL VALVE (3B25)
3B25: 1/4" 316 St.St. 3/2 cam op.valve. , N: service ports 1/4" NPT, C1: Cam pin actuator, 10K: M.W.P. 10,000 psi Liquid, Viton seals: -10°C to +120°C, Hard seated, spring return., Suitable for 2/3 or 2/2 NO or NC operation., All ports are linked during changeover, Suitable for liquid use only.
View actuator
QTY RQD:
3B25N-DL-10K DIRECTIONAL CONTROL VALVE (3B25)
3B25: 1/4" 316 St.St. 2/3 directional valve. , N: service ports 1/4" NPT, DL: Deadmans lever, 10K: Max. W.P. 10,000 psi (liquid), Viton seals: -10°C to +120°C, Hard seated, spring return, Suitable for 2/3 or 2/2 NO or NC operation., All ports are linked during changeover, Suitable for liquid use only.
View actuator
QTY RQD:
3B25N-H0-10K DIRECTIONAL CONTROL VALVE (3B25)
3B25: 1/4" 316 St.St. 2/3 directional valve., N: service ports 1/4" NPT, H0: Pilot operating range: 400 - 3,500 psi, Pilot connection: 1/4" NPT female., 10K: M.W.P. (Valve) 10,000 psi Liquid, Viton seals: -10°C to +120°C, Hard seated, spring return, Suitable for 3/2 or 2/2 NO or NC operation, Suitable for liquid use only.
View actuator
QTY RQD:
3B25N-H1-10K DIRECTIONAL CONTROL VALVE (3B25)
3B25: 1/4" 316 St.St. 2/3 directional valve., N: service ports 1/4" NPT, H1:Pilot operating range: 1,400 -10,000 psi, Pilot connection: 1/4" NPT female., 10K: M.W.P. (Valve) 10,000 psi Liquid, Viton seals: -10°C to +120°C, Hard seated, spring return, Suitable for 2/3 or 2/2 NO or NC operation, Suitable for liquid use only.
View actuator
QTY RQD:
3B25N-H3-10K DIRECTIONAL CONTROL VALVE (3B25)
3B25: 1/4" 316 St.St. 2/3 directional valve. , N: service ports 1/4" NPT, H3: Pilot pressure range: 44 - 300 psi, Pilot connection: 1/4" NPT female., 10K: M.W.P. (Valve) 10,000 psi Liquid, Viton seals: -10°C to +120°C, Hard seated, spring return, Suitable for 2/3 or 2/2 NO or NC operation, Suitable for liquid use only.
View actuator
QTY RQD:
3B25N-L-10K DIRECTIONAL CONTROL VALVE (3B25)
3B25: 1/4" 316 St.St. 2/3 directional valve., N: service ports 1/4" NPT, L: Detented Lever, 10K: M.W.P. 10,000 psi Liquid, Viton seals: -10°C to +120°C, Hard seated, spring return., Suitable for 2/3 or 2/2 NO or NC operation., All ports are linked during changeover, Suitable for liquid use only.
View actuator
QTY RQD:
3B25P-C0-10K DIRECTIONAL CONTROL VALVE (3B25)
3B25: 1/4" 316 St.St. 3/2 cam op.valve. , P: service ports 1/4" BSPP, C0: Cam roller actuator, 10K: M.W.P. 10,000 psi Liquid, Viton seals: -10°C to +120°C, Hard seated, spring return., Suitable for 2/3 or 2/2 NO or NC operation., All ports are linked during changeover, Suitable for liquid use only.
View actuator
QTY RQD:
3B25P-C1-10K DIRECTIONAL CONTROL VALVE (3B25)
3B25: 1/4" 316 St.St. 3/2 cam op.valve. , P: service ports 1/4" BSPP, C1: Cam pin actuator, 10K: M.W.P. 10,000 psi Liquid, Viton seals: -10°C to +120°C, Hard seated, spring return., Suitable for 2/3 or 2/2 NO or NC operation., All ports are linked during changeover, Suitable for liquid use only.
View actuator
QTY RQD:
3B25P-DL-10K DIRECTIONAL CONTROL VALVE (3B25)
3B25: 1/4" 316 St.St. 2/3 directional valve. , P: service ports 1/4" BSPP, DL: Deadmans lever, 10K: Max. W.P. 10,000 psi (liquid), Viton seals: -10°C to +120°C, Hard seated, spring return, Suitable for 2/3 or 2/2 NO or NC operation., All ports are linked during changeover, Suitable for liquid use only.
View actuator
QTY RQD:
3B25P-H0-10K DIRECTIONAL CONTROL VALVE (3B25)
3B25: 1/4" 316 St.St. 3/2 pilot op.valve. , P: service ports 1/4" BSPP, H0: Pilot operating range: 400 - 3,500 psi, Pilot connection: 1/4" NPT female., 10K: Max. W.P. (Valve) 10,000 psi, Suitable for N.O. or N.C. operation., All ports are linked during changeover, Suitable for liquid use only.
View actuator
QTY RQD:
3B25P-H1-10K DIRECTIONAL CONTROL VALVE (3B25)
3B25: 1/4" 316 St.St. 2/3 directional valve., P: service ports 1/4" BSPP, H1:Pilot operating range: 1,400 -10,000 psi, Pilot connection: 1/4" NPT female., 10K: M.W.P. (Valve) 10,000 psi Liquid, Viton seals: -10°C to +120°C, Hard seated, spring return, Suitable for 3/2 or 2/2 NO or NC operation, Suitable for liquid use only.
View actuator
QTY RQD:
3B25P-H3-10K DIRECTIONAL CONTROL VALVE (3B25)
3B25: 1/4" 316 St.St. 3/2 pilot op.valve. , P: service ports 1/4" BSPP, H3: Pilot operating range: 44 - 300 psi, Pilot connection: 1/4" NPT female., 10K: M.W.P. (Valve) 10,000 psi, Suitable for N.O. or N.C. operation., All ports are linked during changeover, Suitable for liquid use only.
View actuator
QTY RQD:
3B25P-L-10K DIRECTIONAL CONTROL VALVE (3B25)
3B25: 1/4" 316 St.St. 2/3 directional valve., P: service ports 1/4" BSPP, L: Detented Lever, 10K: Max. W.P. 10,000 psi (liquid), Viton seals: -10°C to +120°C, Hard seated, spring return., Suitable for 2/3 or 2/2 NO or NC operation., All ports are linked during changeover, Suitable for liquid use only.
View actuator
QTY RQD:
